Export To Australia Aluminum Cylinder Medical Portable Oxygen Cylinder
HC Type Oxygen Supply Apparatus Details

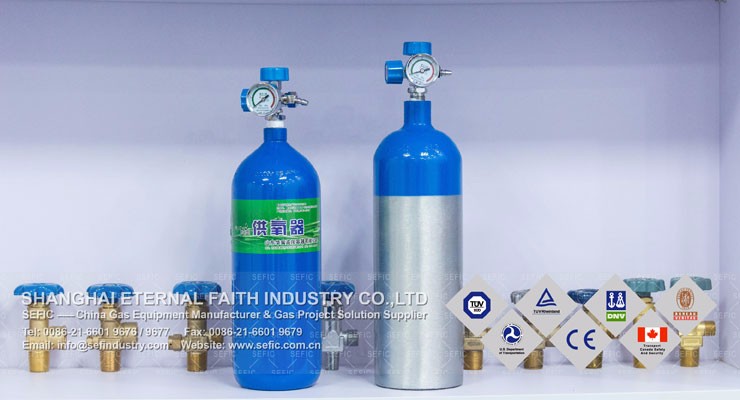

HC Type Oxygen Supply Apparatus within Seamless cylinders and aluminum cylinders
HC Type Oxygen Supply Apparatus
HC Type Oxygen Supply Apparatus

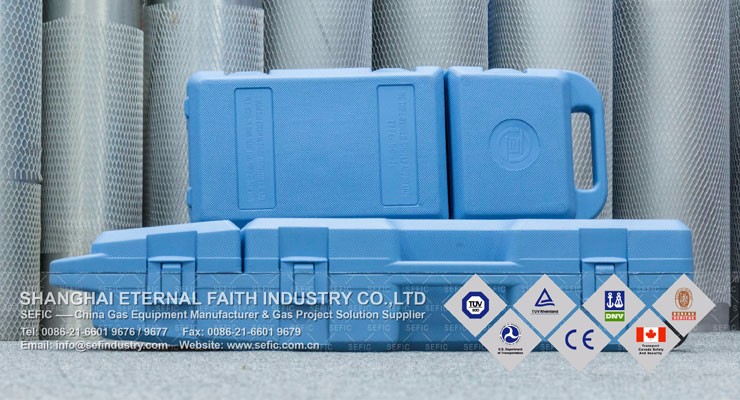

HC Type Oxygen Supply Apparatus Packaging
HC Type Oxygen Supply Apparatus Packaging List
HC Type Oxygen Supply Apparatus Main Product Structure
Performance: This product is equipped with a pressure gauge and a flow meter. Oxygen pressure gauge indicates the oxygen pressure when absorbing oxygen. And it also has the voltage stabilizer which makes its output stable and the oxygen supply apparatus can be adjusted continuously at the range of rate 0 to 5 liters per min.
Applicable Scope: Suitable for the timely rescue of the patients with heart and cerebrovascular diseases and for meeting the daily oxygen need of other patients with chronic respiratory tract, cerebral anoxia diseases and other diseases.
How to Use HC Type Oxygen Supply Apparatus ?
1) Unscrew the humidifier lid and add mineral water or cold water to the water line.
2) Pay attention to the marks of the oxygen input and output on the humidification cup lid when connecting the oxygen tube. Be sure to connect the right.
3) Open the pressure gauge of oxygen supply handwheel to display the oxygen pressure in the bottle.
4) Slowly open the handwheel of flowmeter and it shows the flow.
The float in the float flowmeter are the rates( liters / min) of oxygen flow.
5) Hang the ear-hook on the ear and insert the nasal catheter into the nasal cavity. Then begin to take in oxygen. In addition, each oxygen-uptake time should be 10 to 20 minutes and no more than 60 minutes per day is appropriate.
How to Fill Oxygen ?

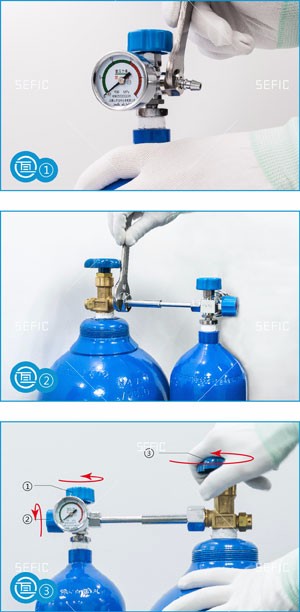

1) Close the oxygen supply handwheel; Unscrew the oxygen filling screw-plug with a dedicated wrench.
2) Connect the oxygen supply apparatus to the oxygen source (large oxygen Cylinder) with an oxygen bridge ; Open the switch of oxygen source (large oxygen cylinder) and then slowly open the oxygen supply handwheel. It is full of oxygen when the pressure gauge pointer stops rising.
3) When filling, close 2, open 3, and then open 1. When finish, close 1 and then close 3, remove the oxygen bridge and tighten the oxygen filling screw-plug.
Technical Parameters of Using Products with Various Types
|Type||Water Capacity||OSC||Using Time||Approx. Weight||Cylinder Size||Working Pressure|
|2L||2L||290L||3-3.2(H)||4.5 (KG)||φ89*425 (MM)||15 (Mpa)|
|4L||4L||580L||6-6.5(H)||8 (KG)||φ121*480 (MM)|
|10L||10L||1450L||15-17(H)||14 (KG)||φ159*780 (MM)|
Note: 1) Highest oxygen storage pressure: 15 MPa.
2) Using time: Calculating by the working pressure (10-15) MPa flow rate of 1 liter / minute. It does not consider the oxygen allowance in the oxygen bottle.
Common Faults and Treatment
|Fault Phenomenon||Fault Cause||Approach|
|Oxygen using time is less than usual.||The oxygen pressure in the cylinder does not reach the required standard when filling oxygen.||Fill oxygen again.|
|When using oxygen device, flow regulation is too large.||Adjust to the appropriate flow when using it.|
|The switch of oxygen supply apparatus is not completely closed which leads to the oxygen leakage when not used.||Close the switch of oxygen supply apparatus when not using it.|
|When taking in oxygen, the amount of bubbles in the humidification cup is normal and there is a little oxygen in the nasal.||Wet cup liner is not installed or damage Oxygen tub conncetion loose or damaged||Re-install or replacement.|
Scope of Application
1) It can be used in the treatment of cardiovascular, respiratory and heart disease, other severe hypoxia symptoms such as Gas poisoning and other illnesses.
2) It can improve the physical condition of oxygen to achieve the purpose of health care. It is suitable for the people in different levels of hypoxia , such as the elderly with poor physical fitness, pregnant women, senior students. It is also used for eliminating fatigue and recovering physical function after we consumed heavy physical or mental power.
3) It can reduce and delay the onset of disease. It is useful for delaying the aging and onset of the human heart, brain, lung, spleen, liver, kidneys and other vital organs.
HC Type Oxygen Supply Apparatus Notes
1) Strictly prohibited to disassemble. Please send the oxygen supply apparatus to production units or repair stations timely when it fails.
2) Strictly prohibited to fill in other gases.
3) Avoid oil and hitting ,be far away from fire, inflammable and explosive materials ,avoid etching gas/liquid and long time exposure to strong light.
4) The pressure shouldn’t exceed 15 MPa when filling oxygen.
5) According to the national standard, it requires that the pressure of oxygen bottle/cylinder needs to be tested every three years. Please contact your local pressure inspection units.
